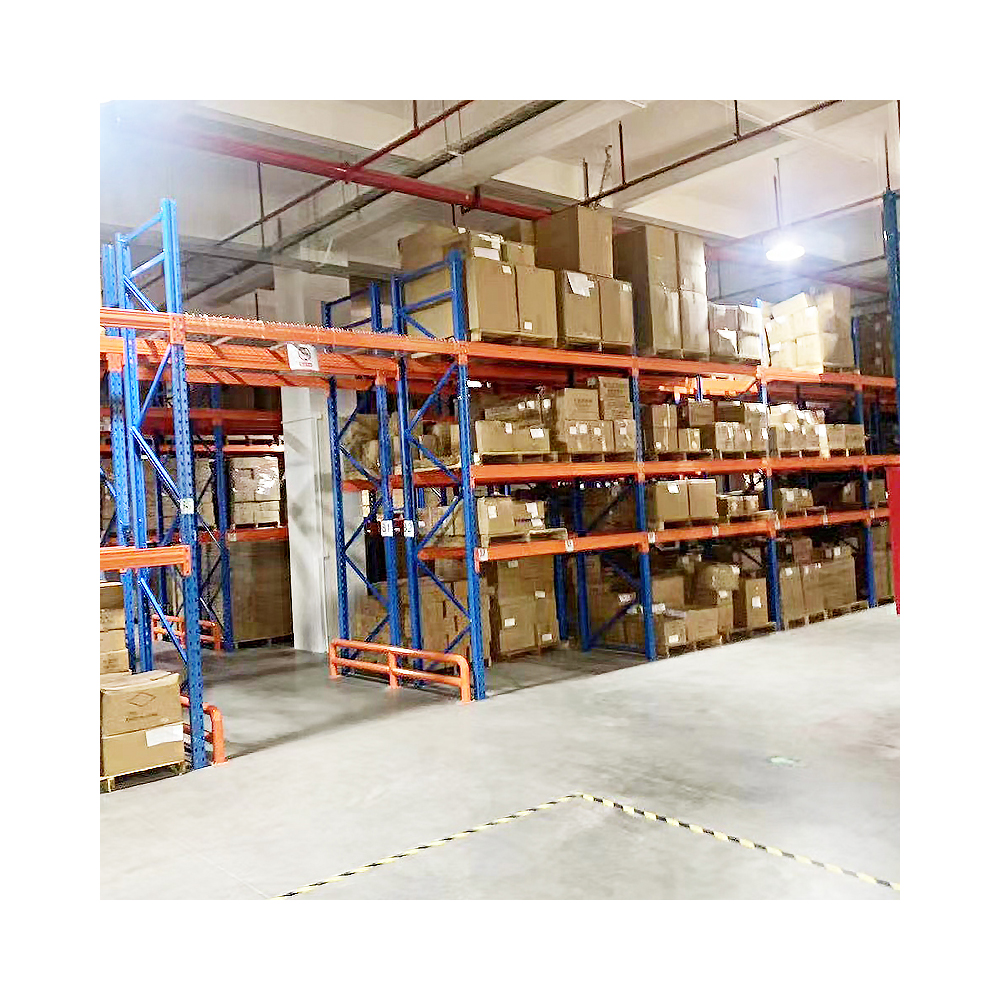

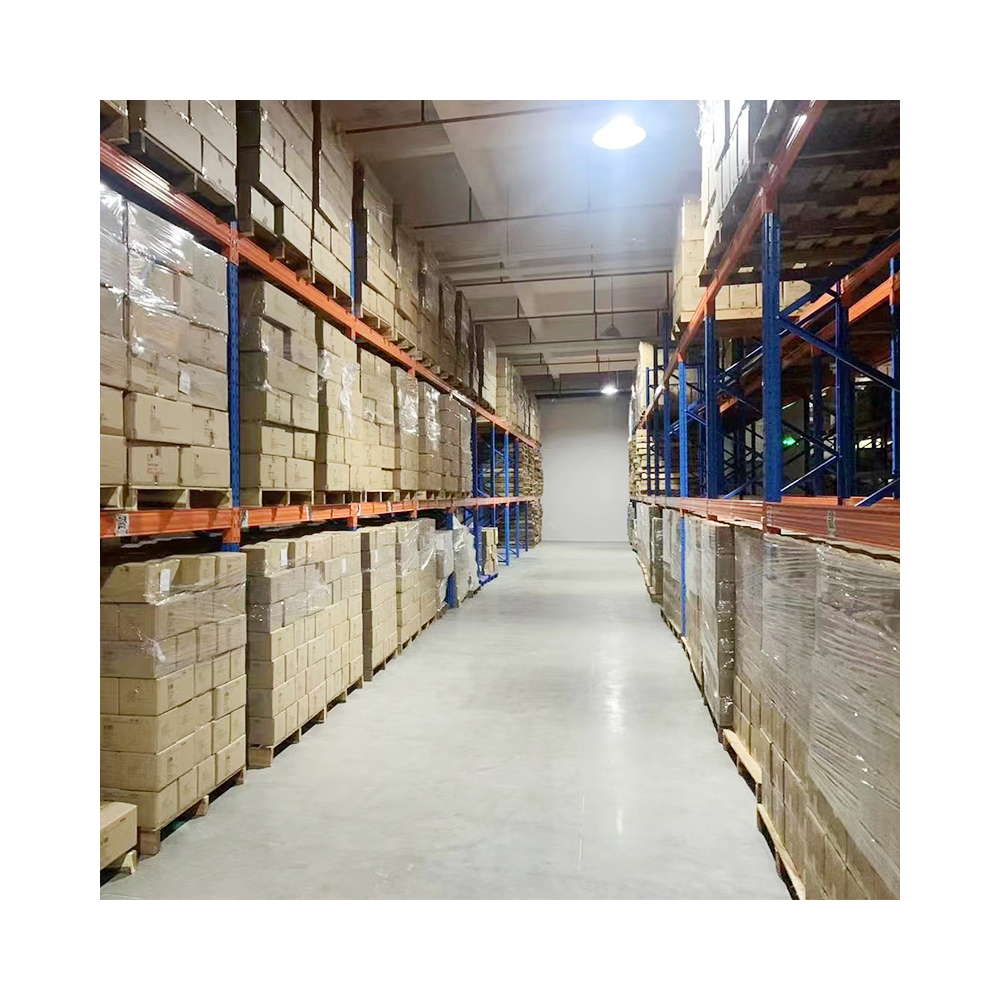

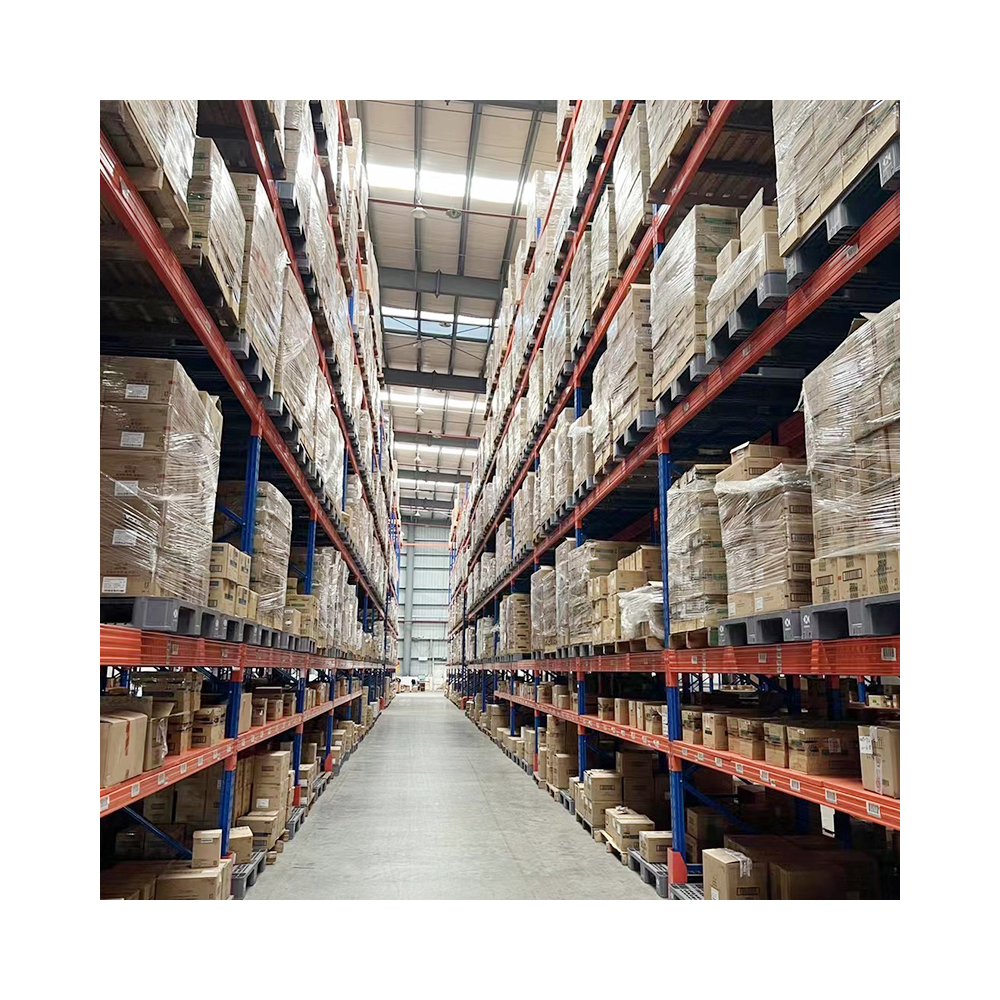

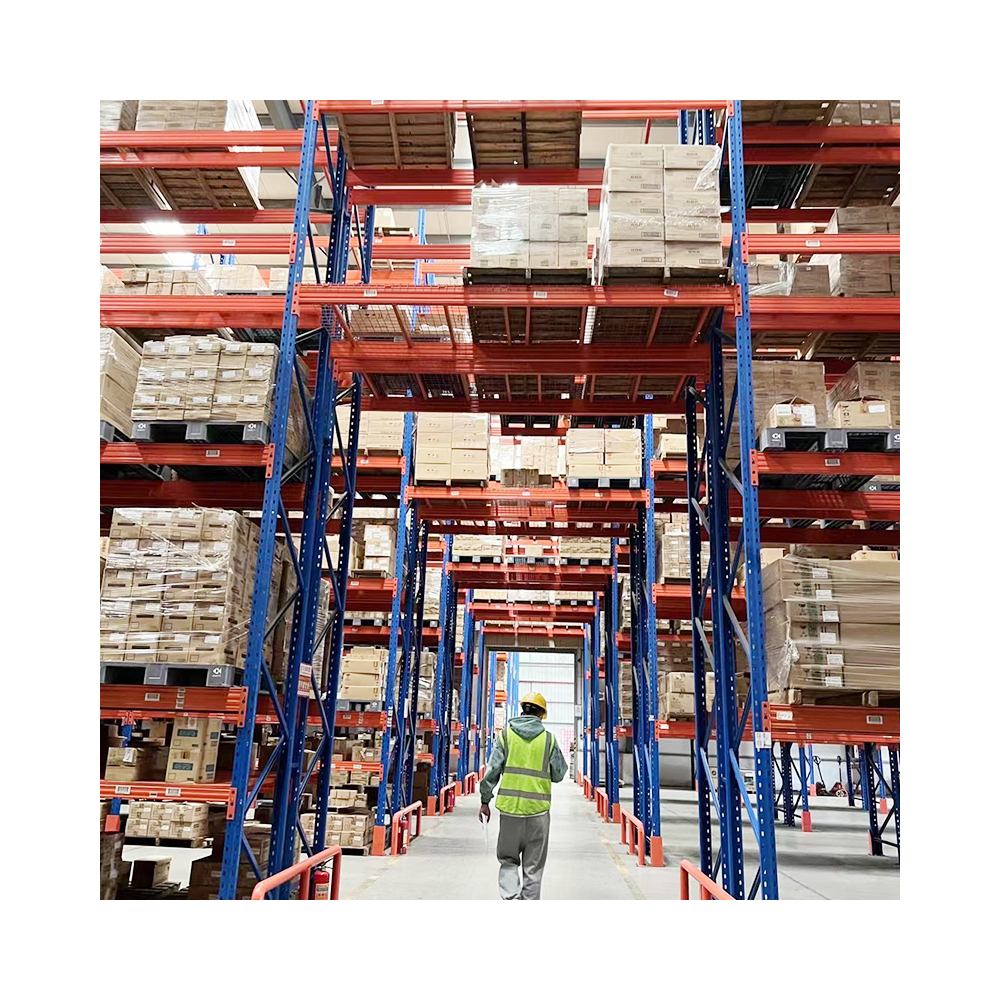

Factory warehouse pallet rack

Brief Description:

Cross beam shelves are safe and convenient, suitable for various warehouses, direct access to goods. It is the simplest and most widely used shelf. Can make full use of space. Convenient pallet access mode, effectively cooperate with forklift loading and unloading, greatly improve the working efficiency. Mechanical equipment requirements: anti-balance forklift or stacker. The stacker can increase the utilization rate of ground space by 30%, and the operating height is more than 16 meters. The characteristics of the beam shelf: smooth inventory turnover. Can provide 100% selection ability. Increase the average pick-up rate. Provide quality product protection. Because the beam shelf is suitable for the storage of goods with many varieties and large batches, in order to facilitate access, the design of the roadway will be more, so the ground utilization rate is relatively low.

Product Details:

Common material specifications:

1, column: 50 * 75 * 1.5 mm, 90 * 60 * 2.0/1.5/1.8 mm, 100 * 70 * 2.5/2.0/2.3 mm, 120 * 70 * 2.5/2.0/2.3 mm, 140 * 70 * 3.0/2.3/2.5 mm.

2,beam:80*45*1.5mm,100*45*1.5mm,110*45*1.5mm,120*45*1.5mm,140*45*1.5mm,160*45*1.5mm.

3, support beam: 30*30*1.5mm,50*25*1.5mm,50*30*1.5mm.

4, laminate: 15mm plywood, 15mm density board, 18mm plywood, 18mm density board, steel laminate.

Note: There is no standard specification for heavy duty shelves, which are actually designed according to pallet size, loading height, cargo weight and warehouse height (customized according to requirements).

Parameters:

Maobang company adhering to the "excellence, integrity-based" purpose, to provide warehousing solutions design, manufacturing, sales, after-sales service three-dimensional services, warehousing customized services, products are exported to Southeast Asia, Europe, America, Africa and other places, won the unanimous recognition of domestic and foreign customers.
